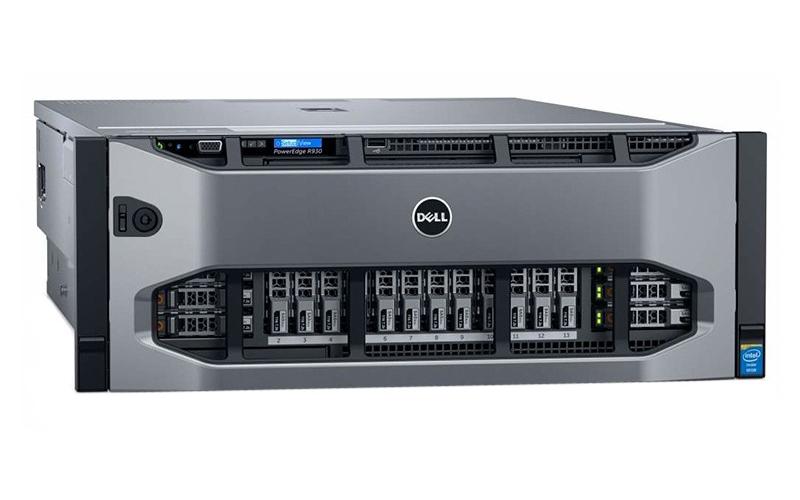

Dell PowerEdge R930 Server delivers accelerate enterprise applications with Dell’s most powerful server featuring highly scalable processing, memory and internal storage. This model is the Dell PowerEdge R930 server with Dual Intel® Xeon® E7-4809 v4, Optional Operating System, 64GB Memory, 600GB SAS H730P Hard Drive and a 3 Year Warranty.
Table 1 shows the quick spec.
| Product Model |
Dell PowerEdge R930 Dual Xeon E7-4809 v4*2/ 64GB (4*16G) 600GB SAS H730P Rack Server |
| Product Series |
Dell PowerEdge R930 Server |
| Fully Customizable |
Dual Intel® Xeon® E7-4809 v4, Optional Operating System, 64GB Memory, 600GB SAS H730P Hard Drive and a 3 Year Warranty |
| Base |
PE R930 Server MLK, No TPM |
| Processor |
2x Intel Xeon E7-4809 v4 2.1GHz,20M Cache,6.4GT/s QPI 8C/16T,HT,No Turbo115W DDR4 1:1 MaxMem1866Hz |
| Operating System |
No Operating System |
| Memory |
64GB |
| Hard Drive |
600GB Hard Drive |
| RAID Controllers |
Internal controllers: PERC H330, PERC H730P
External HBAs (RAID): PERC H830
External HBAs (non-RAID): 12Gbps SAS HBA |
| Chassis |
4U |
| Dimensions |
H: 6.8” (172.6mm)
W: 18.99” (482.4mm)
D: 31.59” (802.3mm) with PSU and bezel
D: 31.01” (787.7mm) with PSU and without bezel |
Note:
| ① |
vFlash media card slot |
⑦ |
USB port (2) |
| ② |
Power button |
⑧ |
Information tag |
| ③ |
NMI button and System identification button |
⑨ |
Rack ears |
| ④ |
Video connector |
⑩ |
Hard drives |
| ⑤ |
LCD menu buttons |
⑪ |
Slide lock |
| ⑥ |
LCD Panel |
⑫ |
Optical drive |
Note:
| ① |
Power supply unit (PSU 3 and 4) |
⑥ |
Ethernet port (4) |
| ② |
PCIe expansion card slots |
⑦ |
USB port (2) |
| ③ |
Power supply unit (PSU 1 and 2) |
⑧ |
Serial connector |
| ④ |
Video connector |
⑨ |
System identification connector |
| ⑤ |
iDRAC Enterprise port |
⑩ |
System identification button |
Compare to Similar Item
Table 2 shows the comparison.
|
Product Model
|
Dell PowerEdge R930 Dual Xeon E7-4809 v4*2/ 64GB (4*16G) 600GB SAS H730P Rack Server
|
Dell PowerEdge R930 Dual Xeon E7-4820 v4*2/ 64GB (4*16G) 1.2TB SAS H730P Rack Server
|
|
Product Series
|
Dell PowerEdge R930 Server
|
Dell PowerEdge R930 Server
|
|
Processor
|
2x Intel Xeon E7-4809 v4 2.1GHz,20M Cache,6.4GT/s QPI 8C/16T,HT,No Turbo115W DDR4 1:1 MaxMem1866Hz
|
2x Intel Xeon E7-4820 v4 2.0GHz,25M Cache,6.4GT/s QPI 10C/20T,HT,No Turbo 115W DDR4 1:1 MaxMem1866Hz
|
|
Operating System
|
No Operating System
|
No Operating System
|
|
Memory
|
64GB
|
64GB
|
|
Hard Drive
|
600GB Hard Drive
|
1.2TB Hard Drive
|
Dell Server Configuration
Table 3 shows the Dell R930 Server Configuration. You can contact us to order a R930 server according to this guide.
|
Model
|
PowerEdge R930
|
|
Description
|
Accelerate enterprise applications with Dell’s most powerful server featuring highly scalable processing, memory and internal storage.
|
|
Processor
|
Intel® Xeon® Processor E7-8800 Product Family
Intel® Xeon® Processor E7-4800 Product Family
|
|
Memory
|
(96 DIMMS): 8GB/16GB/32GB/64GB/128GB RDIMM, LRDIMM up to 2400 MT/s
|
|
PCI Slots
|
Up to 10 PCIe 3.0 slots
|
|
Network Controller
|
4 x 1GbE
2 x 10GbE
|
|
Storage
|
2.5” SATA/SAS SSD, SAS HDD (15K, 10K), nearline SAS HDD (7.2K)
2.5” Dell PowerEdge NVMe Express Flash PCIe SSD
|
Dell PowerEdge R930 Dual Xeon E7-4809 v4*2/ 64GB (4*16G) 600GB SAS H730P Rack Server Specification
| Product Series |
Dell PowerEdge R930 Server |
| Model |
Dell PowerEdge R930 Dual Xeon E7-4809 v4*2/ 64GB (4*16G) 600GB SAS H730P Rack Server |
| Fully Customizable |
Dual Intel® Xeon® E7-4809 v4, Optional Operating System, 64GB Memory, 600GB SAS H730P Hard Drive and a 3 Year Warranty |
| Base |
PE R930 Server MLK, No TPM |
| Processor |
2x Intel Xeon E7-4809 v4 2.1GHz,20M Cache,6.4GT/s QPI 8C/16T,HT,No Turbo115W DDR4 1:1 MaxMem1866Hz |
| Operating System |
No Operating System |
| Memory |
8GB RDIMM, 2400MT/s, Single Rank, x8 Data Width |
| Hard Drive |
600GB Hard Drive |
| Warranty |
3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-Site |
| Chipset |
Intel® C602J |
| Storage |
2.5” SATA/SAS SSD, SAS HDD (15K, 10K), nearline SAS HDD (7.2K)
2.5” Dell PowerEdge NVMe Express Flash PCIe SSD |
| Drive Bays |
Up to 24 x 2.5” hot-plug 12Gb/6Gb SAS HDD or SAS/SATA SSD
Up to 8 front-accessible Express Flash NVMe PCIe SSD (PCIe 3.0) |
| Slots |
Up to 10 PCIe 3.0 slots
1 RAID slot
1 NDC slot |
| RAID Controllers |
Internal controllers: PERC H330, PERC H730P
External HBAs (RAID): PERC H830
External HBAs (non-RAID): 12Gbps SAS HBA |
| Communications |
Embedded NICs:
Broadcom® 5720 quad-port 1Gb NDC
Broadcom® 57800 2x10Gb DA/SFP+ + 2x1Gb BT NDC
Broadcom® 57800 2x10Gb BT + 2x1Gb BT NDC
Broadcom® 57840S quad-port 10Gb SFP+ Direct Attach Rack NDC
Intel® I350 quad-port 1GbE NDC
Intel® X520 dual-port 10Gb DA/SFP+, + I350 DP 1GbE, NDC
Intel® X540 10GbE BT dual-port + I350 1Gb BT DP NDC |
| Power |
Hot-plug redundant PSUs: 750W AC, 1100W AC |
| Availability |
Hot-plug hard drives, hot-plug redundant power, hot-plug redundant fans, ECC memory, internal dual SD module |
| Graphics Card |
Matrox® G200 with 8MB memory |
| Chassis |
4U |
| Management |
iDRAC8 with Lifecycle Controller
iDRAC8 Express (default)
iDRAC8 Enterprise (upgrade option)
8GB or 16GB vFlash media (upgrade options)
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power CenterDell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft System Center
Dell OpenManage Integration for VMware® vCenter
Dell OpenManage Connections:
HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management
Dell OpenManage Plug-in for Oracle Database Manager |
| Rack Support |
ReadyRails® II, the sliding rail system for the R930, provides tool-less support for 4-post racks with square or unthreaded round mounting holes, including all generations of Dell racks. The sliding rail system also supports tooled mounting in 4-post threaded racks |
| Dimensions |
H: 6.8” (172.6mm)
W: 18.99” (482.4mm)
D: 31.59” (802.3mm) with PSU and bezel
D: 31.01” (787.7mm) with PSU and without bezel |
|
